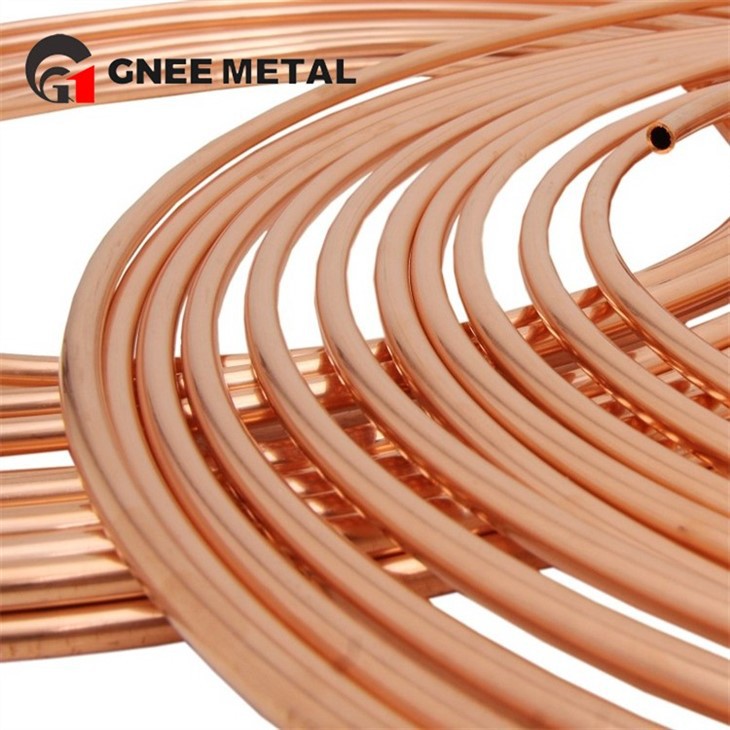

ASTM B280 Air Conditioning & Refrigeration Tube
Copper UNS number Copper type
C10200 Oxygen-free copper, non-residual deoxidiser
C12000 Phosphorus deoxidising copper, low residual phosphorus
C12200 Phosphorus deoxidising copper, high residual phosphorus
Professional ASTM B280 Copper Tube Supplier--GNEE
This specification covers the requirements for seamless UNS C10200, C12000 or C12200 copper alloy tubes used for the connection, repair or replacement of air conditioning or refrigeration units in the field. Material in the form of billets, rods or tubes shall be used to produce uniform and consistent forged structures by hot or cold working. Each tube shall be cold drawn to final size and wall thickness. Coils having a soft annealed condition shall be bright annealed after coiling, then dewatered and capped, plugged, crimped or otherwise closed at both ends. Straight tubes having a hard drawn temper shall be cleaned and capped, plugged or otherwise closed at both ends. Grain size, tensile properties, eddy current and cleanliness test results shall conform to the values listed herein.
Industry-leading copper production technology
Unless otherwise specified, copper tubing shall be made from the following copper materials:
|
Copper |
Previously Used |
Description |
|
C10200 Copper Tube |
OF |
Oxygen free without |
|
C12000 Copper Tube |
DLP |
Phosphorus deoxidized, |
|
C12200 Copper Tube |
DHP |
Phosphorus deoxidized, |
ASTM B280 Copper Tube for Air Conditioning and Refrigeration (ACR) - Dimensions
| Nominal Size (inches) |
Annealed (A) or Drawn Temper (D) | Outside Diameter (inches) |
Inside Diameter (inches) |
Wall Thickness (inches) |
Cross Sectional Area of Bore (square inches) |
|---|---|---|---|---|---|
| 1/8 | A | 0.125 | 0.065 | 0.030 | 0.0033 |
| 3/16 | A | 0.187 | 0.128 | 0.030 | 0.0129 |
| 1/4 | A | 0.250 | 0.190 | 0.030 | 0.0284 |
| 5/16 | A | 0.312 | 0.248 | 0.032 | 0.0483 |
| 3/8 | A | 0.375 | 0.311 | 0.032 | 0.076 |
| D | 0.375 | 0.315 | 0.030 | 0.078 | |
| 1/2 | A | 0.500 | 0.436 | 0.032 | 0.149 |
| D | 0.500 | 0.430 | 0.035 | 0.145 | |
| 5/8 | A | 0.625 | 0.555 | 0.035 | 0.242 |
| D | 0.625 | 0.545 | 0.040 | 0.233 | |
| 3/4 | A | 0.750 | 0.680 | 0.035 | 0.363 |
| A | 0.750 | 0.666 | 0.042 | 0.348 | |
| D | 0.750 | 0.666 | 0.042 | 0.348 | |
| 7/8 | A | 0.875 | 0.785 | 0.045 | 0.484 |
| D | 0.875 | 0.785 | 0.045 | 0.484 | |
| 1 1/8 | A | 1.125 | 1.025 | 0.050 | 0.825 |
| D | 1.125 | 1.025 | 0.050 | 0.825 | |
| 1 3/8 | A | 1.375 | 1.265 | 0.055 | 1.26 |
| D | 1.375 | 1.265 | 0.055 | 1.26 |
| Nominal Size (inches) |
Max. Working Pressure (psi) | ||
|---|---|---|---|
| Annealed Coils | Annealed Straight Lengths | Drawn Straight Lengths | |
| 1/8 | 2613 | ||
| 3/16 | 1645 | ||
| 1/4 | 1195 | ||
| 5/19 | 1017 | ||
| 3/8 | 836 | 777 | 1524 |
| 1/2 | 618 | 664 | 1302 |
| 5/8 | 525 | 615 | 1206 |
| 3/4 | 435 | 538 | 1055 |
| 7/8 | 495 | 496 | 972 |
| 1 1/8 | 420 | 421 | 825 |
| 1 3/8 | 373 | 374 | 733 |
| 1 5/8 | 347 | 348 | 682 |
| 2 1/8 | 309 | 607 | |
| 2 5/8 | 286 | 560 | |
| 3 1/8 | 270 | 529 | |
| 3 5/8 | 258 | 506 | |
| 4 1/8 | 249 | 489 | |
