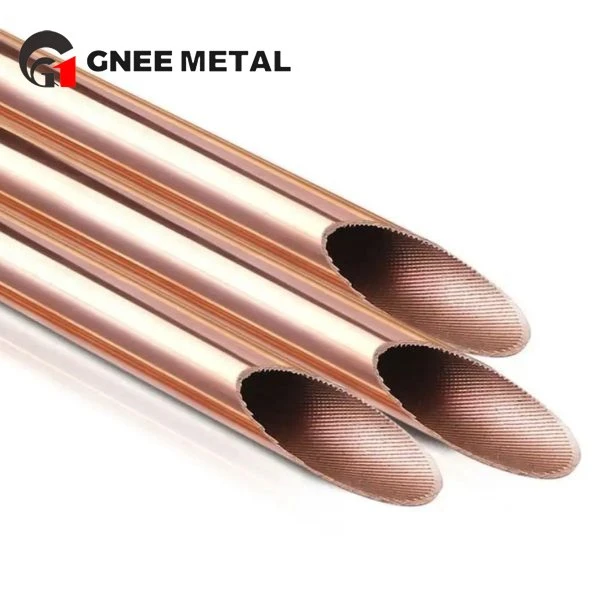

Seamless Inner Grooved Copper Tube
Copper is a metal element, is also a transition element, chemical symbol Cu, English copper, atomic number 29. pure copper is a soft metal, the surface just cut for the red-orange with a metallic luster, the monomers are purplish red.
Professional Copper Tube Supplier--GNEE
Internal grooved copper tube/Internal thread copper tube refers to the internal grooved copper with smooth outer surface and a certain number of regular threads on the internal surface.
The internal thread copper pipe is also called non smooth copper pipe, and its English name is inner grooved copper tube (IGT), which refers to the internal thread TP2 Copper Pipe with smooth outer surface, a certain number of regular threads on the inner surface.
Due to the increase of the internal surface area of the internally threaded copper tube, its thermal conductivity is 20 to 30% higher than that of the bare tube. With the world energy shortage and the implementation of the domestic energy efficiency ratio air conditioning access system, internally threaded copper pipes will be widely used in the air conditioning and refrigeration industry.
Top quality copper products
Inner Grooved Copper Tube Performance Advantages
High dimensional accuracy
Inner grooved copper tube is manufactured with high precision, ensuring its dimensions is accurate and consistent. This makes them ideal for use in applications where precise measurements are critical.
High heat dissipation performance
The inner grooves of copper tubes increase the surface area, allowing for better heat transfer. This makes inner grooved copper tubes ideal for use in heat exchangers, where efficient heat transfer is essential.
High cleanliness
Inner grooved copper tubes are manufactured using high-quality materials and advanced production techniques, ensuring they are free from impurities and contaminants. This makes them ideal for use in applications where cleanliness is essential, such as in the food and beverage industry.
Lightweight
Inner grooved copper tubes are lightweight compared to other materials, making them easy to transport and install. This makes them ideal for use in applications where weight is a concern, such as in aircraft and automotive industries.
Specification
Inner Grooved copper tube
1.Widely for air conditioner, refrigerator, Gas, Water
2.ISO 9001:2008
3.GB/T20928-2007
| Item | Symbot | Tolerances (±) | Dimensions | ||||
|---|---|---|---|---|---|---|---|
| Nominal Size | (mm) | 7×0.32 | 7.94×0.32 | 9×0.34 | 9.52×0.34 | 9.52×0.36 | |
| Nominal O.D. | O.D.(mm) | 0.05 | 7.0 | 7.94 | 9.0 | 9.52 | 9.52 |
| Nominal Wall Thickness | Tav(mm) | 0.32 | 0.32 | 0.34 | 0.36 | 0.36 | |
| Nominal I.D. | I.D.(mm) | 6.16 | 7.032 | 8.14 | 8.52 | 8.52 | |
| Bottom Thickness | TW(mm) | 0.03 | 0.27 | 0.254 | 0.28 | 0.30 | 0.30 |
| Fin Height | HF(mm) | 0.02 | 0.15 | 0.20 | 0.16 | 0.20 | 0.20 |
| Fin Width | WI | 0.05 | 0.188 | 0.270 | 0.246 | 0.255 | 0.220 |
| Top Angle of Fin | α | 10° | 40 | 40 | 44 | 44 | 53 |
| Helix Angle | β | 2° | 18 | 18 | 18 | 18 | 18 |
| Number of Fins | N | 0 | 60 | 50 | 60 | 60 | 60 |
| Fin Type | C | C | C | C | C | ||
| Weight Per Meter | (g) | 62 | 75 | 88 | 90 | 95 | |
Dimensions
Wall thickness of copper pipe varies with the pipe schedule - the four common standards are named K, L, M, and DWV (Drain/Waste/Vent - non-pressurized), from thickest to thinnest.
| Pipe / Tube Type | Nominal Pipe Size |
O.D. | I.D. | Wall Thickness | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| K | L | M | DWV | K | L | M | DWV | |||
| Inner Grooved Copper Tubes | 1/4" | 3/8" | 0.305 | 0.315 | - | - | 0.035 | 0.030 | - | - |
| Inner Grooved Copper Tubes | 3/8" | 1/2" | 0.402 | 0.430 | 0.450 | - | 0.049 | 0.035 | 0.025 | - |
| Inner Grooved Copper Tubes | 1/2" | 5/8" | 0.527 | 0.545 | 0.569 | - | 0.049 | 0.040 | 0.028 | - |
| Inner Grooved Copper Tubes | 5/8" | 3/4" | 0.652 | 0.666 | - | - | 0.049 | 0.042 | - | - |
| Inner Grooved Copper Tubes | 3/4" | 7/8" | 0.745 | 0.785 | 0.811 | - | 0.065 | 0.045 | 0.032 | - |
| Inner Grooved Copper Tubes | 1" | 1-1/8" | 0.995 | 1.025 | 1.055 | - | 0.065 | 0.050 | 0.035 | - |
| Inner Grooved Copper Tubes | 1-1/4" | 1-3/8" | 1.245 | 1.265 | 1.291 | 1.295 | 0.065 | 0.055 | 0.042 | 0.040 |
| Inner Grooved Copper Tubes | 1-1/2" | 1-5/8" | 1.481 | 1.505 | 1.527 | 1.541 | 0.072 | 0.060 | 0.049 | 0.042 |
| Inner Grooved Copper Tubes | 2" | 2-1/8" | 1.959 | 1.985 | 2.009 | 2.041 | 0.083 | 0.070 | 0.058 | 0.042 |
| Inner Grooved Copper Tubes | 2-1/2" | 2-5/8" | 2.435 | 2.465 | 2.495 | - | 0.095 | 0.080 | 0.065 | - |
| Inner Grooved Copper Tubes | 3" | 3-1/8" | 2.907 | 2.945 | 2.981 | 3.030 | 0.109 | 0.090 | 0.072 | 0.045 |
Inner Grooved Copper Tubes Application:
Electrical & Electronic Conductors
Superconductor matrixes
Vacuum tubes
Glass-to-metal seals
Power Substations
Connectors
Switches
Bus Systems
Titanium product packaging
Types of Packaging:
Bundles (hexagonal)
Wooden Boxes
Crates (steel/wooden)
Packaging for Inner Grooved Copper Tubes as per customer's requirements
Special Features:
Each bundle covered with plastic for protection against extreme weather.
End of Inner Grooved Copper Tubes protected by plastic caps.
Bundles strapped with plastic strips.
Each radius of U-Bend tube separated by a separator.
Packaging list (laminated) placed with box/crate.
