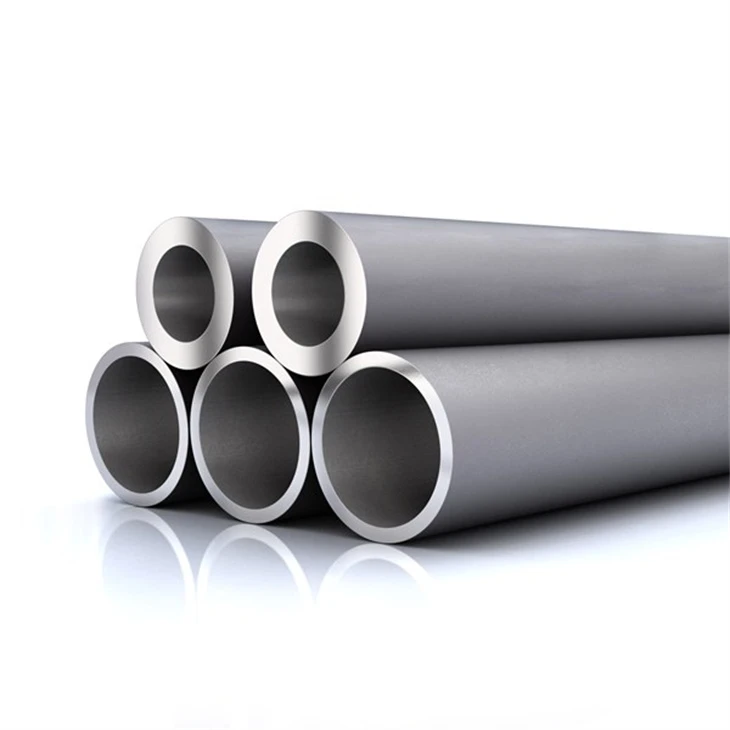

Titanium Gr 2 Sanitary Tube
Gnee Group is the most professional manufacturer of Gr 2 Titanium Tubes.The corrosion resistance property of Titanium Gr 2 Decorative Tube comes from a strongly adherent, yet stable and protective oxide film. This oxide film which forms on the surface of Titanium UNS R50400 Tubing is in the presence of oxygen. This film makes the commercially pure titanium grades, in this instance - Titanium Gr 2 High Pressure Tube tends to be resistant to most oxidizing, neutral and inhibited reducing, as well as mildly reducing environments.
Titanium Gr 2 Sanitary Tube offers excellent resistance to seawater and marine atmospheric corrosion as well.A much appreciated feature of the Titanium Gr 2 Cold Rolled Coiled Tube is light in weight because of its lower density. This lower density is a characteristic which makes the Gr 2 Titanium Bright Annealed Tube very desirable, especially in those applications where weight could be an area of concern.
Titanium Grade 2 Tubing Pressure Rating
| Tube O.D. (in.) |
Wall Thickness of Tube (inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
