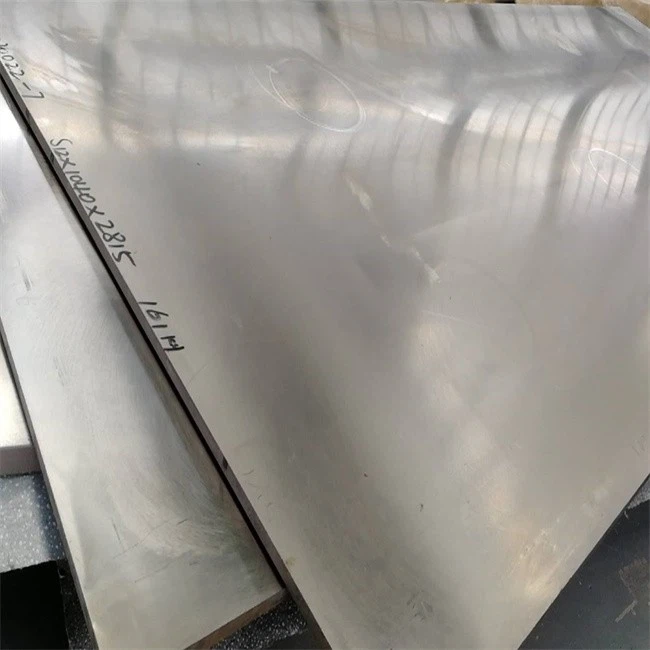

Titanium Alloy Plates
Our Titanium Alloy Plates are available in various grades and dimensions to meet diverse customer requirements. They are known for their superior mechanical properties, lightweight nature, and excellent biocompatibility. These plates provide reliable performance in industries such as aerospace, automotive, medical, and chemical processing.
Titanium Alloy Plates
Titanium Alloy Plates are high-performance materials made from a combination of titanium and other alloying elements, such as aluminum, vanadium, and iron. These plates offer exceptional strength, corrosion resistance, and heat resistance, making them suitable for a wide range of demanding applications.
Titanium Alloy Plates Detail
|
Standard |
ASTM B265 / ASME SB265/ AMS 4911 /ASTM F67 / ASTM F136/ISO 5832-2 / ISO 5832-3 |
|
Titanium Type |
Commercially Pure(CP) / Titanium alloy |
|
Grade |
Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333 BT1-00 BT1-0 BT1-2 |
| Thickness |
0.025-75mm |
|
Length |
Cut according to the request |
|
Technique |
Hot rolled or cold rolled |
|
Surface |
Acid surface or polishing, sand blasted surface |
Product Manufacturing Standards and Processes: Our Titanium Alloy Plates are manufactured following rigorous quality standards and advanced manufacturing processes. Some key manufacturing aspects include:
Material Selection: High-quality titanium alloys are carefully chosen to ensure the desired properties and alloy composition.
Melting and Casting: The selected alloys are melted in a controlled environment and cast into ingots or billets.
Hot Rolling: The ingots or billets are heated and passed through hot rolling mills to obtain the desired thickness and shape.
Heat Treatment: The plates undergo heat treatment processes, such as annealing or solution treatment, to optimize their mechanical properties.
Finishing: The plates are precision cut, trimmed, and undergo surface treatments, such as pickling and passivation, to achieve the desired finish.
Shipping and Packaging Options: We understand the importance of secure and efficient shipping. We offer various packaging and shipping options, including:
Protective Packaging: The Titanium Alloy Plates are carefully wrapped and protected with moisture-resistant materials and edge protectors to prevent damage during transit.
Wooden Crates or Pallets: Plates are securely packed in wooden crates or pallets for added protection and ease of handling.
Customized Packaging: We can accommodate specific packaging requirements based on customer needs, ensuring the safe delivery of the plates.
We prioritize quality and ensure that our Titanium Alloy Plates meet the highest standards. Our quality services include:
Material Testing: Each batch of plates undergoes rigorous material testing, including chemical composition analysis and mechanical property evaluation.
Dimensional Inspection: Precise dimensional measurements are performed to ensure that the plates meet the specified thickness, width, and length.
Non-Destructive Testing (NDT): NDT techniques like ultrasonic testing and dye penetrant inspection are employed to detect any internal defects or surface irregularities.
Certification and Documentation: We provide relevant certification and documentation, including material test reports and compliance certificates, to ensure traceability and quality assurance.
