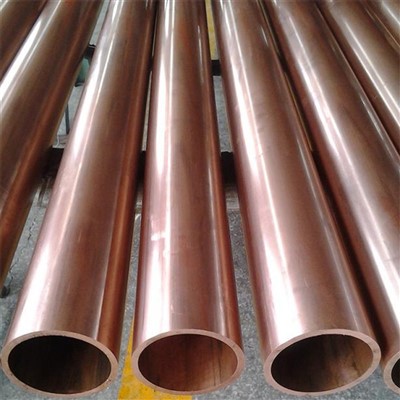

What is a C11000 copper pipe?
A C11000 copper pipe is a type of copper water tube made from Electrolytic Tough Pitch (ETP) Copper, which is at least 99.90% pure copper. It is the most common and widely used copper pipe for plumbing and heating systems in residential, commercial, and industrial applications. When you see a shiny, new copper pipe in a hardware store or a plumbing installation, it is most likely C11000.
Specifications
The following specifications cover Copper Alloys C11000
ASME SB133
ASTM B1
ASTM B101
ASTM B116
ASTM B124
ASTM B133
ASTM B152
ASTM B172
ASTM B173
ASTM B174
ASTM B187
ASTM B188
ASTM B189
ASTM B2
ASTM B224
ASTM B226
ASTM B228
ASTM B229
ASTM B246
ASTM B272
ASTM B283
ASTM B286
ASTM B298
ASTM B3
ASTM B33
ASTM B355
ASTM B370
ASTM B447
ASTM B451
ASTM B47
ASTM B470
ASTM B48
ASTM B49
ASTM B496
ASTM B506
ASTM B556
ASTM B638
ASTM B694
ASTM B738
ASTM B8
ASTM F467
ASTM F468
MIL B-20292
MIL C-12168
MIL W-6712
QQ B575
SAE J461
SAE J463
UNS C11000
Chemistry Data
|
Copper |
Includes Ag |
| Principal Design Features | |
Copper, ETP, Electrolytic Tough Pitch. Has conductivity 101% IACS. Ductile, anneal resistant. |
|
|
||
| Applications | |
C11000 is mainly used for plumbing fittings and some electrical components not requiring extensive machining. |
|
|
||
| Machinability | |
The machinability rating of this alloy is 20. (Where Alloy 360 FC Brass is 100). |
|
|
||
| Welding | |
Soldering is rated as "excellent", brazing is rated as "good", oxyacetylene welding is "not recommended", gas shielded arc welding is rated as "fair", coated metal arc welding is "not recommended", spot welding is "not recommended", seam welding is "not recommended" and butt welding is rated as "good". |
|
|
||
| Forging | |
The hot forgeability rating of this alloy is 65. (Forging brass = 100). The recommended hot working temperature for this alloy is between 1400 and 1600 F. |
|
|
||
| Hot Working | |
This alloy's capacity for being hot formed is rated as "excellent". |
|
|
||
| Cold Working | |
The capacity for cold working this alloy is rated as "excellent". |
|
|
||
| Annealing | |
The annealing temperature for this alloy is between 700 and 1200 F. |
Physical Data
| Density (lb / cu. in.) | 0.323 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 10.3 |
| Melting Point (Deg F) | 1949 |
| Mean Coeff Thermal Expansion | 9.4 |
| Modulus of Elasticity Tension | 17000 |
